N-401

N-401

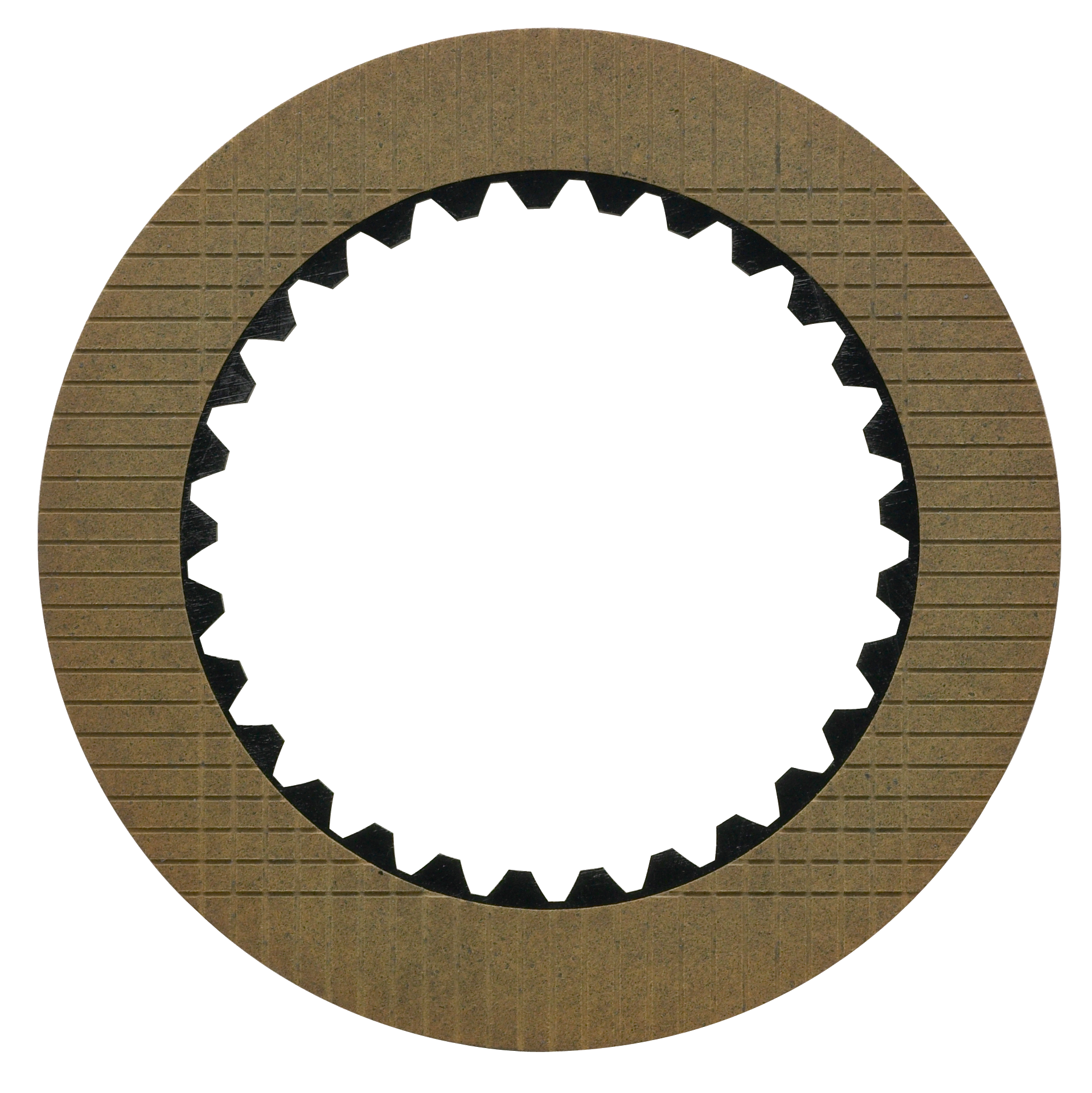

Carlisle Brake & Friction's N-401 oil cooled friction material has high energy capacity and coefficient of friction with a positive lockup. It is used primarily in powershift and counter shaft transmission applications. This resilient paper material has shown the ability to survive abuse that has destroyed most paper materials. N-401 is available in a variety of friction thicknesses and oil groove patterns depending on the application.

Additional Product Details

  • High energy capacity
  • High coefficient of friction with positive lockup
  • Demonstrated ability to survive abuse that has destroyed other materials
  • Power shift transmissions
  • Counter shaft transmissions

Technical Specifications

Typical Applications Power shift & counter shaft transmissions
Energy Capacity High
Dynamic* Coefficient .11 to .14
Static* Coefficient .16 to .20
Max Static Load, Mpa 5.6
Max Dynamic Load, Mpa 2.8
